4 100Mbps downlink PoE ports+2 100Mbps uplink ports
IEEE 802.3af/at international standard, with a total power of 55
Supports three working modes: VLAN, OFF, and Extend
No configuration required, plug and play, easy to install and use

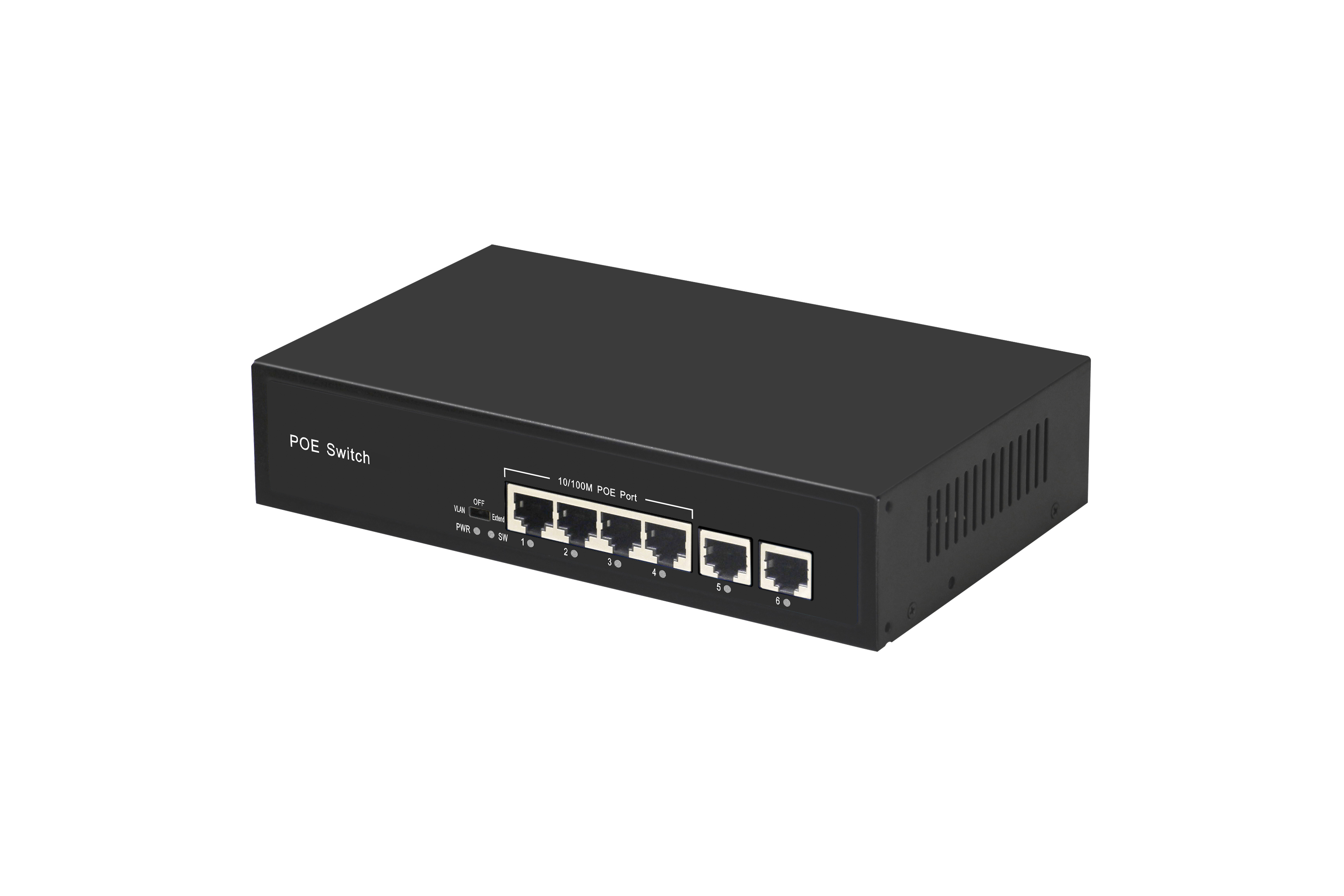

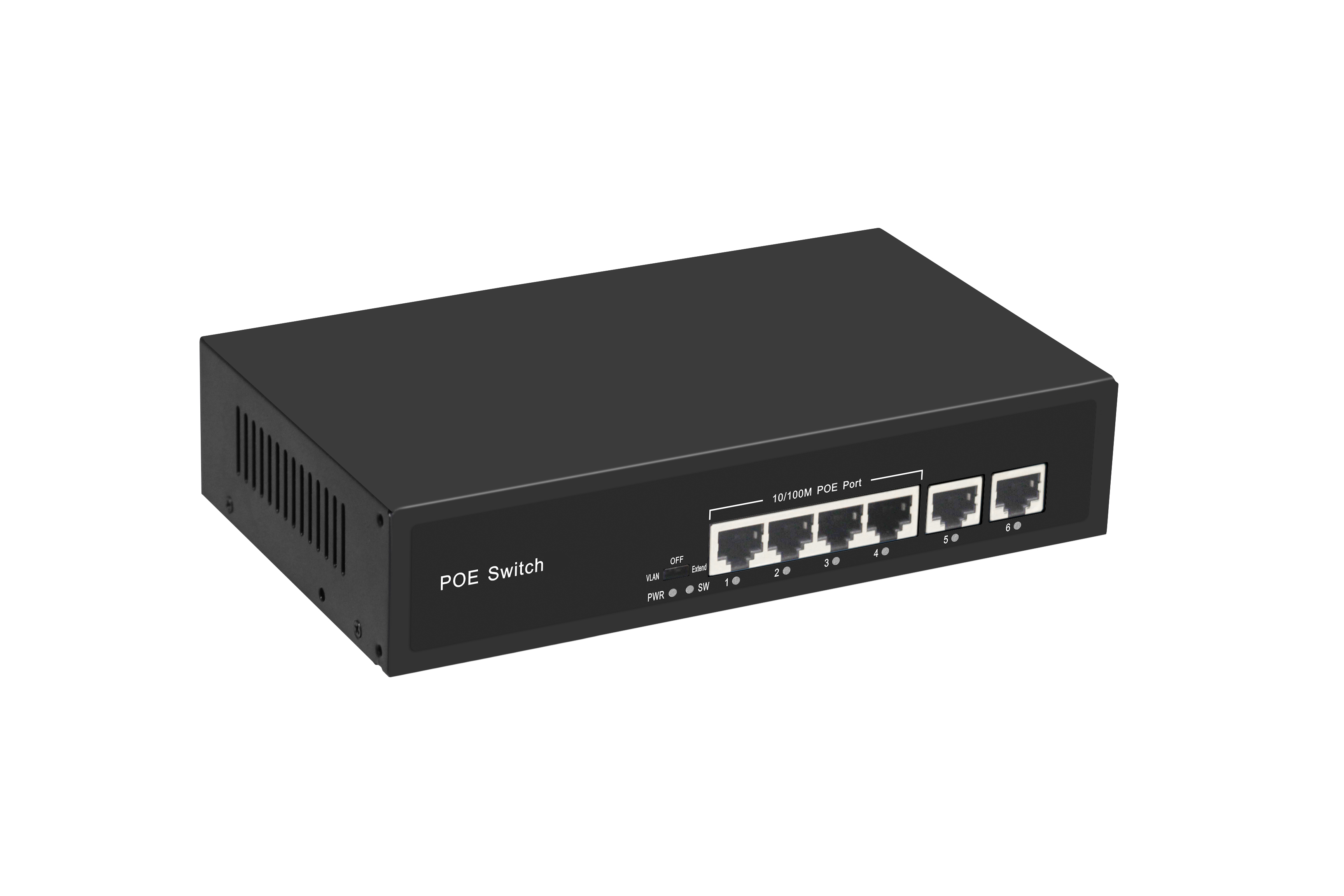

The 6-port 100M Ethernet power switch (PoE Switch) uses high-quality high-speed network IC and the most stable PoE chip. The PoE Port supports 802.3af and 802.3at standards, and this series of PoE switches can be 10/100M Ethernet. The network provides seamless connectivity, and the PoE power port can automatically detect and supply power to powered devices that comply with the IEEE802.3af or IEEE802.3at standards. Non PoE devices intelligently cannot detect power and only send data. PoE refers to power over Ethernet, which transmits data signals to some IP based terminals (such as IP phones, wireless access APs, webcams, etc.), but also provides DC power for the equipment. Technically, these devices that receive direct current are called power supply devices. It has simple and convenient installation and maintenance methods, as well as rich business functions, to help users build a safe and reliable high-performance network. Mainly located in the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, residential broadband, etc; It can be widely used in Ethernet access scenarios such as small and medium-sized enterprises, internet cafes, hotels, and schools.
power supply | AC INPUT (100-240V) |
Ethernet | 4 100Mbps PoE network ports Two 100Mbps uplink network ports |
performance | Backplane bandwidth: 1.2Gbps Packet forwarding rate: 0.8928Mpps Package cache: 448K MAC address table: 448K Giant frame: 1K Forwarding mode: store and forward MTBF: 100000 hours |
network protocol | IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3x (Flow Control) |
PoE protocol | IEEE802.3af (15.4W) IEEE802.3at (30W) |
Industry standards | EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD)、EN61000-4-4 (EFT) Shock: IEC 60068-2-27 Free Fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
network media | 110Base-T: Cat3, 4, 5 or above UTP/STP (≤ 100m) 100Base TX: Cat5 or above UTP/STP (≤ 100m) 1000Base TX: Cat5 or above UTP/STP (≤ 100m) |
safety certification | CE、FCC、RoHS |
work environment | Working temperature: -20~50 ° C Storage temperature: -40~85 ° C Working humidity: 10%~90%, non condensing Storage humidity: 5%~90%, non condensing Working height: up to 10000 inches Storage height: up to 10000 inches |
pilot lamp | PWR (power indicator), SW (dial light), 1-6 green light (link&data) |
Dip switch | VLAN: Port isolation mode, 1-4 ports cannot communicate with each other and can only communicate with the UP link port Extend: Link extension mode, in which the PoE power supply and data transmission distance of the switch can be extended to 250 meters, and the transmission rate can be increased to 10M; |
structure size | Product size: 200 * 120 * 45mm Packaging size: 245 * 190 * 60mm Net weight of product: 0.6KG Product gross weight: 0.9KG |
Packing information | Outer box size: 505 * 320 * 400mm Packing quantity: 20 units Packing weight: 19KG |
supply voltage | Input voltage: AC 100-240 V Power supply: 52V1.05A |
packing list | 1 switch, 1 power cord, 1 manual and 1 certificate of conformity |
