4 gigabit PoE downlink network ports+1 gigabit uplink electrical port+1 gigabit uplink SFP optical port
Number 1 supports BT60W output, ports 2-4 support standard 30W output
The entire machine is available in two power specifications of 65W/120W for selection
Storage and forwarding switch mechanism, with backplane bandwidth up to 12Gbps
Intelligent dialing, with three working modes: VLAN, Default, and Extend
6-port Gigabit intelligent standard PoE switch, using high-quality and high-speed network IC and the most stable PoE chip. The PoE port meets the 802.3af or 802.3at standards. This series of PoE switches can provide seamless connection for 10/100/1000M Ethernet, and the PoE power supply port can automatically detect and supply power to powered devices that meet the IEEE802.3af or IEEE802.3at standards. Non PoE devices are not powered by intelligent detection and only transmit data.
PoE technology (Power over Ethernet) is the power over Ethernet technology. It means that while transmitting data signals for some IP based terminals (such as IP phones, wireless access APs, network cameras, etc.), it also provides DC power supply technology for this device. These devices receiving DC power supply are called power receiving devices.
With simple and convenient installation and maintenance methods and rich business features, it helps users create a safe and reliable high-performance network. Mainly positioned at the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, and residential broadband; It can be widely used in Ethernet access scenarios such as small and medium-sized enterprises, internet cafes, hotels, schools, etc.
Input/output | |

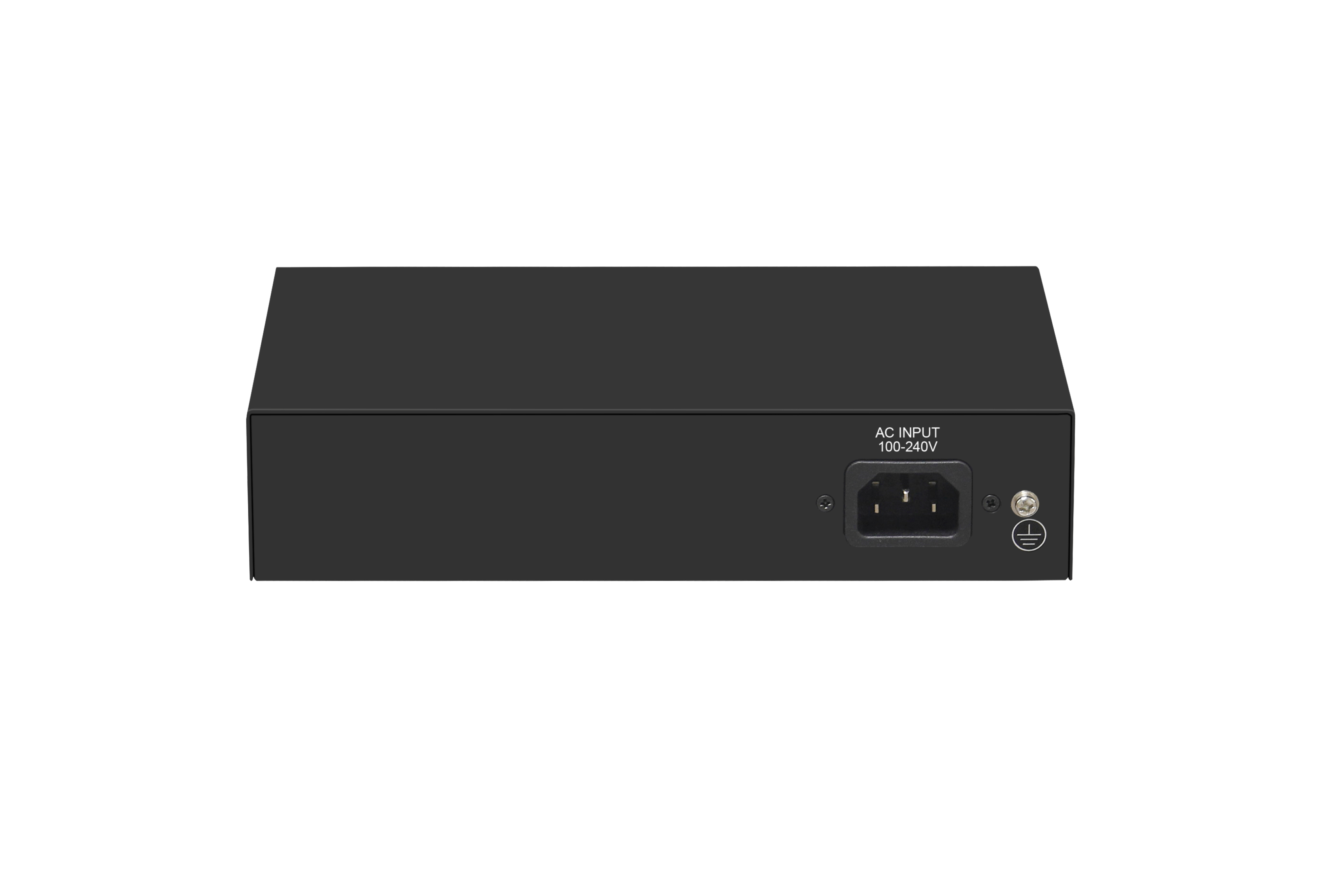

power supply | AC 100~240V 50/60Hz |
Ethernet | 4 Gigabit PoE ports 1 gigabit electrical port 1 Gigabit SFP optical port |
Hardware parameters | |
backplane bandwidth | 12Gbps |
packet forwarding rate | 8.928Mpps |
Package cache | 1Mb |
MAC address table | 2K |
jumbo frame | 9216bytes |
Forwarding mode | store and forward |
Protocol standards | |
network protocol | IEEE 802.3 |
IEEE 802.3u | |
IEEE 802.3ab | |
IEEE 802.3z | |
IEEE 802.3x | |
PoE protocol | IEEE802.3af (15.4 W) |
IEEE802.3at (30 W) | |
Fiber optic medium | multimode:50/125、62.5/125、100/140um |
Single mode fiber:8/125、8.7/125、9/125、10/125um | |
network media | 10Base-T : Cat3, 4, 5 or aboveUTP/STP(≤100m) |
100Base-TX : Cat5 or aboveUTP/STP(≤100m) | |
1000Base-TX : Cat5 or aboveUTP/STP(≤100m) | |
Industry standards | EMI: FCC Part 15, CISPR (EN55032) class A |
EMS: EN61000-4-2 (ESD)、EN61000-4-4 (EFT)、EN61000-4-5 (Surge) | |
impact: IEC 60068-2-27 | |
free fall: IEC 60068-2-32 | |
vibrate: IEC 60068-2-6 | |
Product Certification | |
safety certification | CE、FCC、RoHS |
environmental standards | |
work environment | operation temperature:-20~50°C |
Storage temperature:-40~85°C | |
Working humidity: maximum relative humidity of 90%, non condensing | |
Storage humidity: maximum relative humidity of 95%, non condensing | |
Working height: maximum 10000 feet (3000 M) | |
Storage height: up to 10000 feet (3000 M) | |
Functional indication | |
pilot lamp | PWR (power indicator), Mode (dial code indicator), 1-6 green light (link&data) |
PWR | Always on: The device is powered on |
Not on: The device is not powered on | |
Mode | Always on: VLAN (port isolation) |
Not lit: Default (normal mode) | |
Flashing: Extend | |
1-6 green light | Always on: Link connection is normal |
Not lit: Link not working | |
Flashing: Data transmission | |
Dip switch | VLAN、Default、Extend |
VLAN | Port isolation, 1-4 ports to achieve mutual isolation of monitoring network's lower interfaces, interworking with upper interfaces, and protecting internal network security |
Default | Normal mode, all interfaces communicate with each other, with a transmission distance of less than 100 meters |
Extend | Link extension mode, 3-4 port PoE power supply and data transmission distance can be extended to 250 meters, with a transmission rate of 10M |
Physical specifications | |
structure size | Product size(L*W*H):200*118*44mm |
Package size(L*W*H):245*190*60mm | |
Product weight:0.6Kg | |
package weight:0.9Kg | |
Packing information | Carton size:505*320*402mm |
Packing quantity:20 units | |
Shipping weight:19KG | |
packing list | Switch: 1 set |
Instructions: 1 copy | |
Certificate of conformity: 1 copy | |
Power cord: 1 |
