24 Gigabit PoE network ports+2 Gigabit SFP optical ports
PoE port complies with IEEE 802.3af/at international standard
There are two optional specifications for the overall power of 300W/400W
Backplane bandwidth 52Gbps
Intelligent dialing, with three working modes: VLAN, Default, and Extend
1-8 ports support QoS priority function
Port lightning surge: common mode 2KV, differential mode 1KV; Electrostatic ESD: air 15KV, contact 8KV
Desktop, supports 1U rack mounted installation

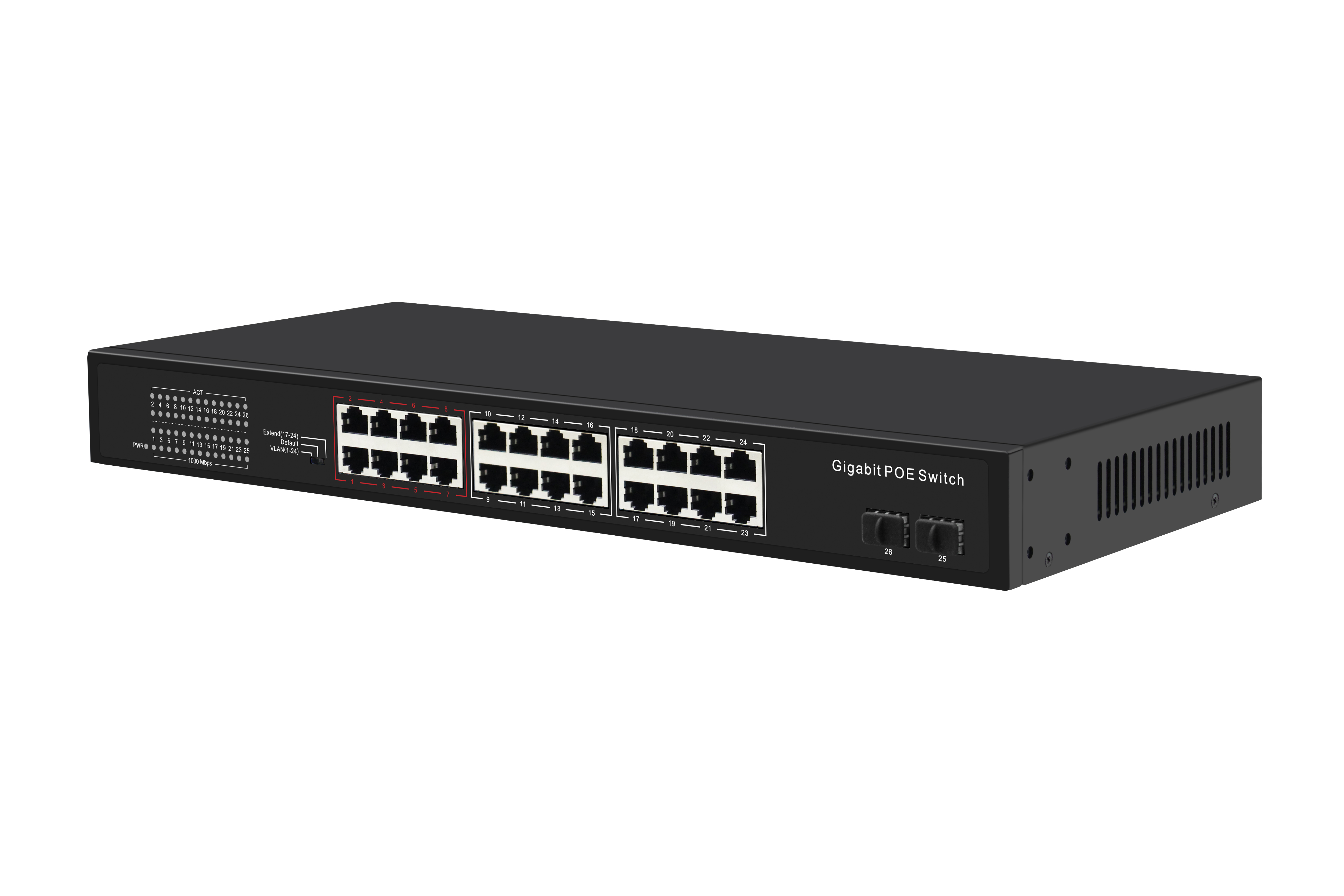

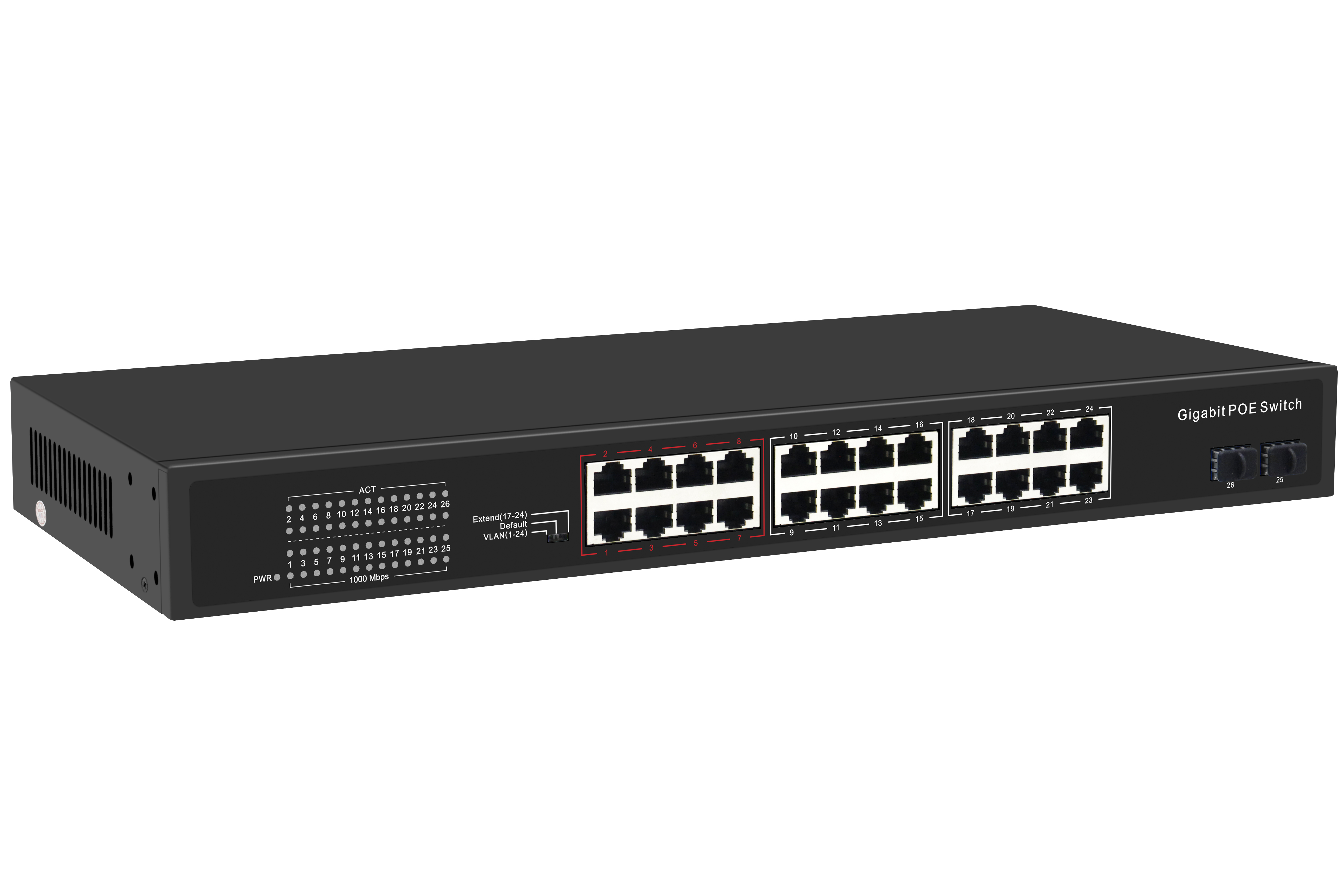

26 Ports 10/100/1000M PoE Switch with 24 Port 10/100/1000M PoE + 2 Port Gigabit SFP Uplink , using high-quality high-speed network IC and the most stable POE chip, POE port meets 802.3af / 802.3at standard, this series of PoE Switch can be 10/100M Ethernet The network provides a seamless connection, and the PoE power port can automatically detect and power the powered devices that comply with the IEEE802.3af / IEEE802.3at standards. The non-POE device intelligently detects no power and only transmits data.
PoE (Power over Ethernet) refers to the technology of providing dc Power supply to some IP-based terminals (such as IP telephone, wireless access AP, network camera, etc.) while transmitting data signals. These devices receiving dc Power supply are called receiving devices.
With simple and convenient installation and maintenance methods and rich business features, it helps users to build a safe and reliable high-performance network. It is mainly located in the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, and residential broadband; it can be widely used in Ethernet access scenarios such as small and medium-sized enterprises, Internet cafes, hotels, and schools.
I/O Interface | |

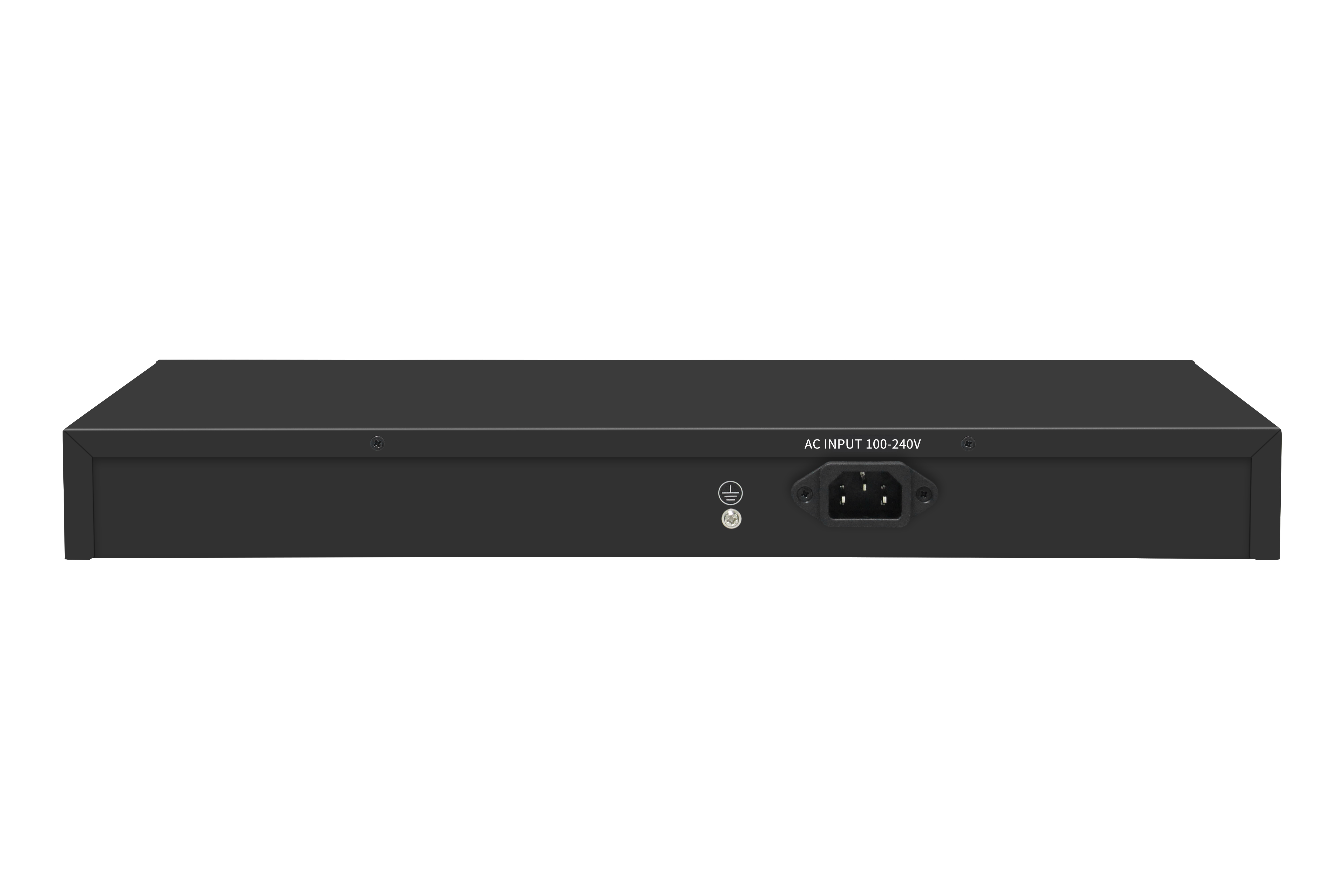

Power | Input: AC 100-240V, 50/60Hz |
Ethernet | 24*10/100/1000M PoE Port 2*Gigabit SFP Port |
Performance | |
Switching Capacity | 52Gbps |
Throughput | 38.7Mpps |
Packet Buffer | 4M |
MAC Address | 8K |
Jumbo Frame | 9Kbytes |
Transfer Mode | Store and forward |
MTBF | 100000 hour |
Standard | |
Network protocol | IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3z (1000Base-FX) IEEE802.3x (Flow control) |
PoE Protocol
| IEEE802.3af （15.4W） IEEE802.3at （30W） |
Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD)、EN61000-4-4 (EFT)、 Shock: IEC 60068-2-27 Free Fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
Network Medium
| 10Base-T : Cat3,4,5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or aboveUTP(≤100m) |
Optical Media | Multimode fiber : 50/125、62.5/125、100/140um Single mode fiber : 8/125、8.7/125、9/125、10/125um |
Protection | |
Security Certificae | CE、FCC、RoHS |
Environment | |
Working Environment | Working Temperature：-20~50°C Storage Temperature：-40~85°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~90%，non-condensing Working Height：Maximum10,000 feet Storage heigh：Maximum 10,000 feet |
Indication | |
LED Indicators | PWR（power supply），ACT（Link&Data），1000Mbps（1000M Link） |
DIP Switch | VLAN: 1-24 port is isolated each other, but all can communicate with uplink port 25/26 Default :All ports communicate freely Extend:17-24 Port support 250 meters transmission on 10Mbps/s |
Mechanical | |
Structure Size | Product Dimension (L*W*H): 445mm*285mm*45mm Package Dimension (L*W*H): 500mm*350mm*90mm N.W：3.2kg G.W：3.8 kg |
Packing Info | Carton MEAS：600*495*435mm Packing Qty：6 units Packing Weight：24.2KG |
Power Voltage | Input Voltage ： AC 100-240V, 50/60Hz Power supply：52V7.69A |
Package List | Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Warranty card 1 pc, Brackets 1 pair |
Ordering Info | |
ZT-IE6000S-24GP2GS-300 | 26-port 10/100/1000M PoE Switch(300W) |
ZT-IE6000S-24GP2GS-400 | 26-port 10/100/1000M PoE Switch(400W) |
