Support 24 100 Gigabit POE ports+2 Gigabit Ethernet ports+2 Gigabit SFPs (optical multiplexing)
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Ethernet port supports 10/100M adaptation, POE supports IEEE802.3af, IEEE802.3at
Flow control method: Full duplex adopts IEEE 802.3x standard, while half duplex adopts Back pressure standard
Support for automatic port flipping (Auto MDI/MDIX)
Adopting a storage and forwarding exchange mechanism
All ports support line speed switching and giant frame transmission
Monitoring the working status of panel indicator lights and assisting in fault analysis
Equipped with QOS, MSTP, IGMP and other functions; 802.1X authentication, SNMP management, and other functions
Support port lightning surge: common mode 6KV, differential mode 2KV; Electrostatic ESD: air 15KV, contact 8KV

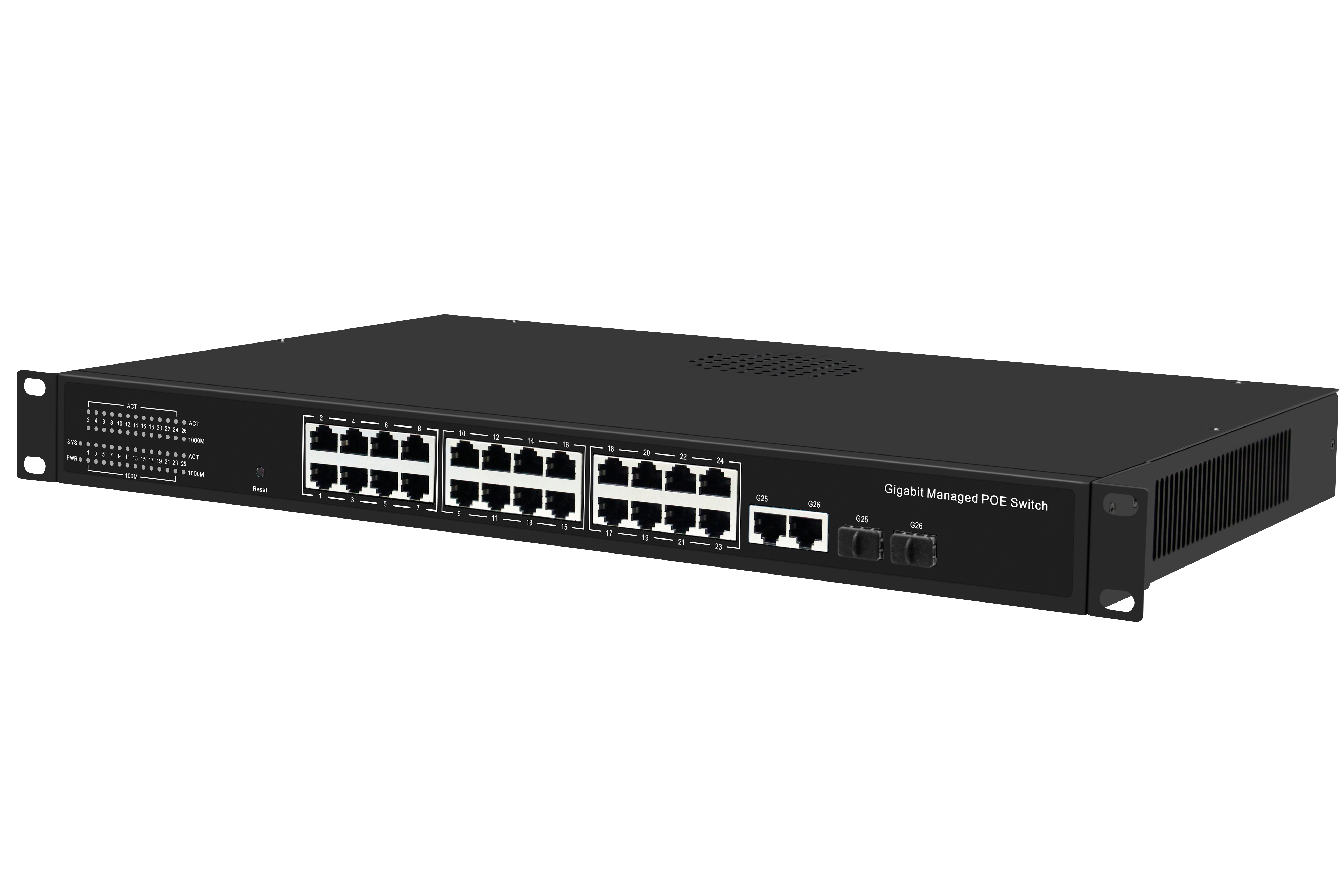

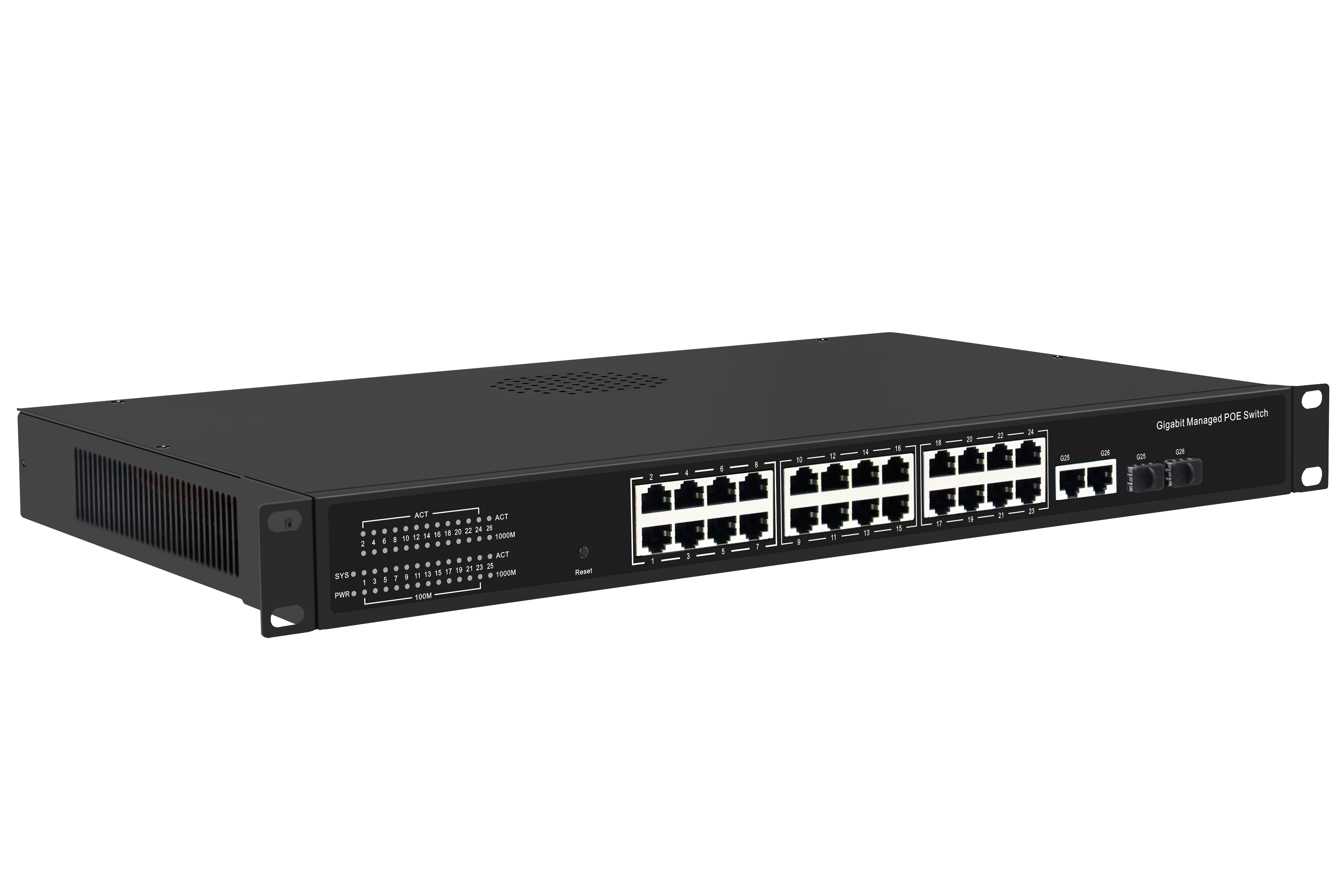

The 28 port gigabit managed power over Ethernet switch (PoE switch) uses high-quality high-speed network IC and the most stable PoE chip. The PoE port meets the 802.3af or 802.3at standard. This series of PoE switches can provide seamless connection for 10/100/1000M Ethernet, and the PoE power supply port can automatically detect and supply power to powered devices that meet the IEEE802.3af or IEEE802.3at standard. Non PoE devices do not supply power for intelligent detection, Only transmit data.
PoE technology (Power over Ethernet) is the power over Ethernet technology. It means that while transmitting data signals for some IP based terminals (such as IP phones, wireless access APs, network cameras, etc.), it also provides DC power supply technology for this device. These devices receiving DC power supply are called power receiving devices.
With simple and convenient installation and maintenance methods and rich business features, it helps users create a safe and reliable high-performance network. Mainly positioned at the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, and residential broadband; It can be widely used in Ethernet access scenarios such as small and medium-sized enterprises, internet cafes, hotels, schools, etc.
General performance indicators | ||
product name | 28 port 100 Gigabit network managed POE switch | |
Model | ZT-IE6250S-24TPC2GT2GS-400 | |
Port Definition | 24 100 Gigabit POE ports+2 Gigabit Ethernet ports+2 Gigabit SFPs (optical multiplexing) | |
network protocol | IEEE 802.3 | |
IEEE 802.3u | ||
IEEE 802.3ab | ||
IIEEE 802.3x | ||
IEEE 802.1q | ||
IEEE 802.1p,QoS | ||
IGMP Snooping | ||
POE parameters | PoE standard: Meets IEEE802.3af/IEEE802.3at Single port maximum: 15.4 W (IEEE 802.3af) Single port maximum: 30 W (IEEE 802.3at) PoE compatibility: IEEE 802.3af/at adaptive POE port output voltage: DC48-55V POE power supply core: 1/2+; 3/6- | |
Network transmission medium | 10BASE-T: Cat3,4,5 UTP (≤ 100 meters) 100BASE-TX: Cat5 or above UTP (≤ 100 meters) 1000BASE-TX: Cat5 or above UTP (≤ 100 meters) | |
Fiber optic indicators | Multimode fiber: 850nm, 1310nm Transmission distance: 550m/2Km Single mode fiber: 1310nm, 1550nm Transmission distance: 20/40/60/80/100/120Km | |
LED indication | PWR | Always on: The device is powered on |
Not on: The device is not powered on | ||
SYS | Flashing: The system is operating normally | |
Not lit: The system is not running | ||
Link | Always on: The link is normal | |
Not lit: Link not working | ||
Act | Always on: No data transmission | |
Flashing: Data transmission | ||
Not lit: Link not working | ||

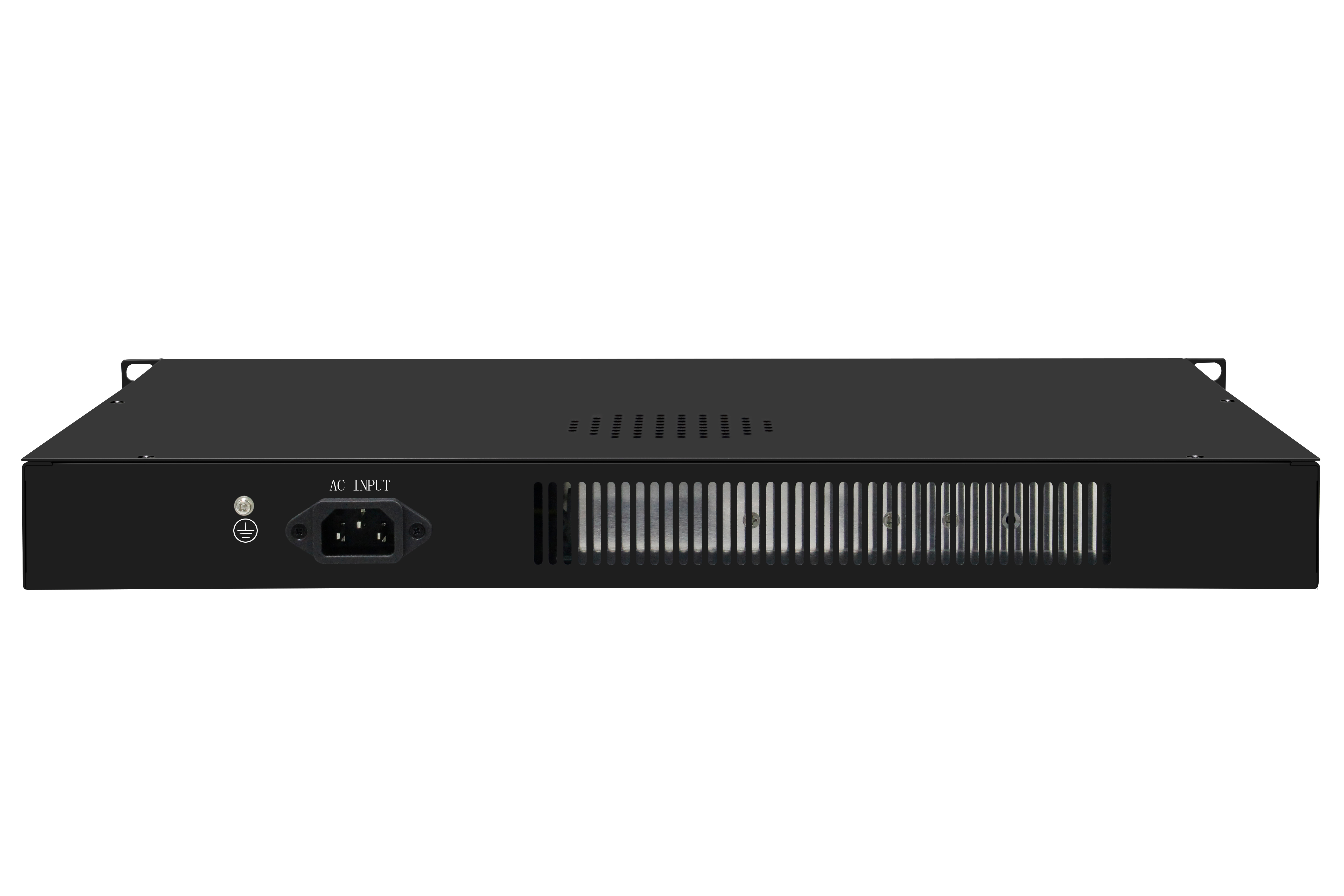

power supply | Machine input voltage: AC100-240V; Output: 52V7.69A Total power: 400W | |
Dimension | Product size (L × W × H) : 445mm × 280mm × 45mm Packaging size (L × W × H) : 470mm × 350mm × 120mm Product weight: 3.2kg Packaging weight: 3.9kg | |
work environment | Working temperature: -20~50 ° C Storage temperature: -40~85 ° C Working humidity: maximum relative humidity of 90%, non condensing Storage humidity: maximum relative humidity of 95%, non condensing Working height: maximum 10000 feet (3000 meters) Storage height: up to 10000 feet (3000 meters) | |
authentication | CE、FCC、ROHS、CCC | |
mean time between failures | 100000 hours | |
packing list | 1. Switch: 1 set 2. Instructions: 1PCS 3. Certificate of conformity and warranty card: 1PCS 4. Power cord: 1 piece 5. Hanging ears: 1 pair | |
warranty | 2 years | |
TECHNICAL INDEX | ||
exchange capacity | 64Gbps | |
packet forwarding rate | 6.547Mpps | |
Package cache | 4M | |
Memory capacity | 32MB | |
Flash memory capacity | 16MB | |
MAC address table | 16K | |
VLANs | 4096 | |
jumbo frame | 1.6Kbytes | |
Layer 2 software functions | ||
Port Management | Enable/disable ports | |
Speed, duplex, MTU settings | ||
Flow control settings | ||
Port information viewing | ||
Port Mirror | Supports port access direction and VLAN mirroring | |
line rate | Supports port speed limit, with speed limit granularity determined by the chip | |
port isolate | Supports port isolation settings | |
Storm suppression | Supports unknown unicast, unknown multicast, and broadcast storm suppression | |
Link Aggregation | Support static manual aggregation | |
VLAN | Access | |
Trunk | ||
Supports VLAN partitioning based on ports and protocols | ||
Support GVRP dynamic VLAN registration | ||
Voice VLAN | ||
MAC | Support for static addition and deletion | |
MAC address learning quantity limit | ||
Support dynamic aging time setting | ||
spanning tree | 802.1D Standard Spanning Tree (STP) | |
802.1w Fast Spanning Tree (RSTP) | ||
802.1s Multi Spanning Tree (MSTP) | ||
IGMP-snooping | Support for static addition and deletion | |
Extended functionality | ||
ACL | Based on source MAC, destination MAC, protocol type, source IP, destination IP, L4 port number | |
Supports time range time period management | ||
QOS | Classification based on 802.1p (COS) Based on DSCP classification Classification based on source IP, destination IP, and port number Support SP, WRR, DRR scheduling strategies Support for traffic speed limit CAR | |
LLDP | Supports LLDP link discovery protocol | |
User settings | Add/Remove Users | |
log | User login, operation, status, and event logging | |
Anti attack | ARP binding (IP, MAC, PORT binding) | |
network diagnostics | Supports ping, telnet, and trace | |
system management | Device reset, configuration save/restore, upgrade management, time setting, etc | |
management function | ||
TELNET | Support telnet remote management | |
WEB | WEB management page | |
SNMP | SNMP V1/V2/V3 | |
POE | Support POE power supply management |
