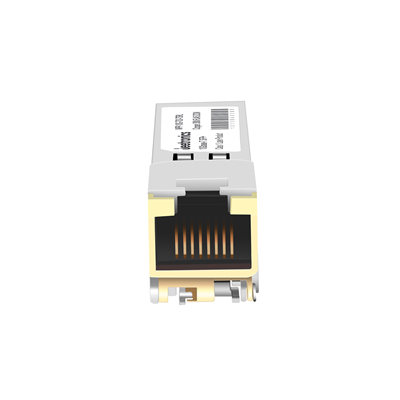

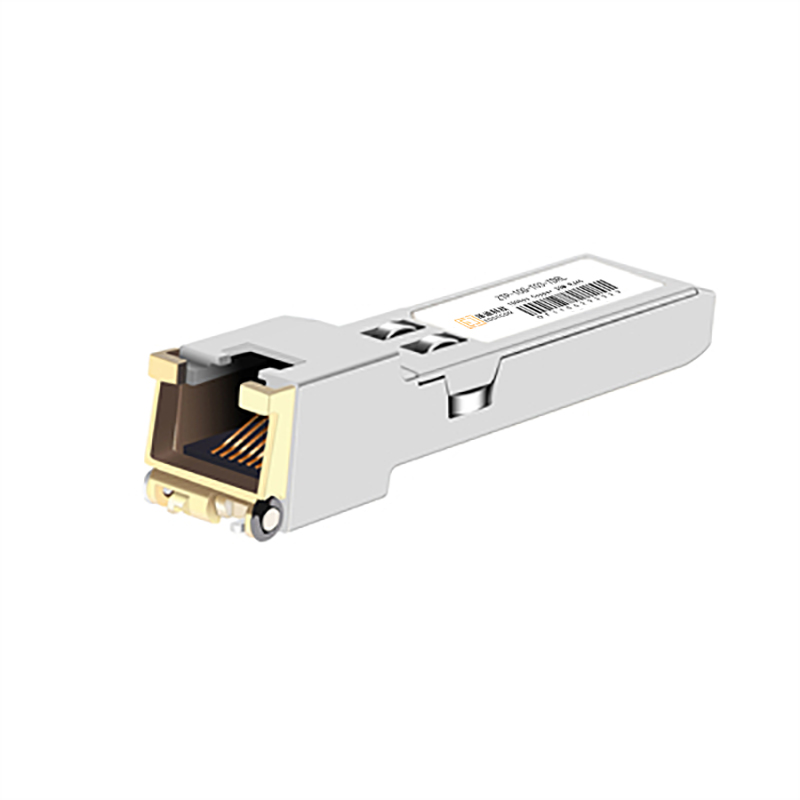

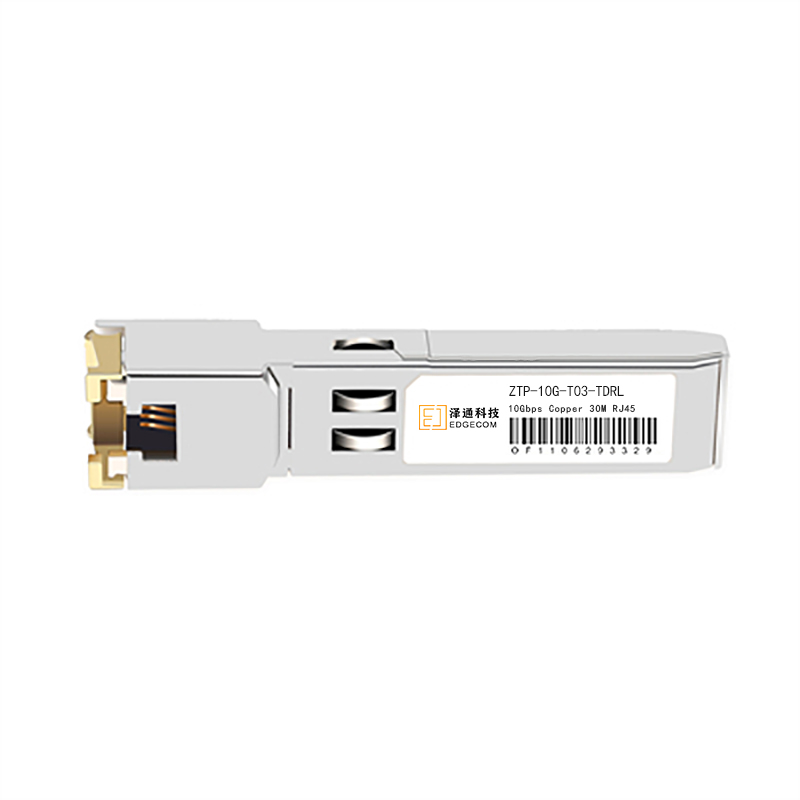

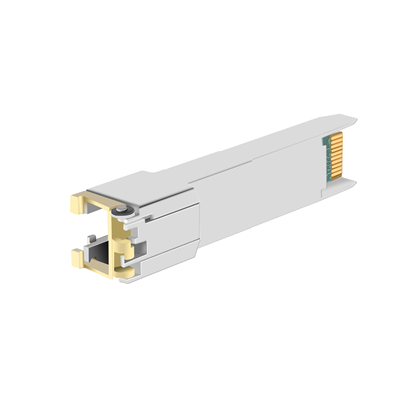

ZTP-10G-T03-TDRL is a 10Gbps SFP+encapsulated transceiver that meets MSA standards. It is designed, assembled, and tested in ISO certified manufacturing facilities, making it an ideal choice for meeting various optical network applications.
Hot swappable SFP+packaging
Supports data rates up to 10Gbps
Single 3.3V power supply and industrial low power consumption
The maximum link length on copper fiber optic cable can reach 30M
Meets Level 1 laser safety requirements
Compliant with RoHS 6 (lead-free)
Operating temperature: 0-70 ℃ (optional expansion/industrial grade)
Complies with SFP+MSA specifications
low power consumption
| P/N | JPP-10G-T03-TDRL |
| Form Factor | SFP+ |
| Standard & protocal | 1000/2.5G/5G/10GBASE T |
| Data Rate | 10Gbps |
| WaveLength | / |
| Media | Copper Cable |
| Reach | 30M |
| Interface | RJ45 |
| Tx Source | / |
| Rx Source | / |
| Tx Power | / |
| Rx Power | / |
| Temp. | Tc/Ti |
| Rx_LOS | YES |
| Tx Disable | YES |
