8 gigabit electrical ports+1 gigabit FX optical port industrial Ethernet switch, supporting 8x10/100/1000Base-T (X) electrical ports and 1x1000Base-X optical port. The product complies with FCC, CE, and RoHS standards. ZT-IE6050-4GT1GS - has a working temperature of -40 ℃ to 75 ℃, and its strong robustness can adapt to various harsh environments. It can also be conveniently placed in a compact control box. The installation characteristics of the guide rail, wide temperature operation, and the IP40 protection level shell and LED indicator light make the ZT-IE6050-8GT1GS-WA a plug and play industrial device, providing reliable and convenient solutions for users' Ethernet device networking. It can be widely used in industrial scenarios with Ethernet access such as comprehensive energy sources, smart transportation, smart factories, smart cities, and smart mines.
Adopting high-quality optoelectronic integrated modules to provide good optical and electrical characteristics
Ensure reliable data transmission and long working life
Supports full duplex or half duplex modes with automatic negotiation capability
The network interface supports fully automatic cross recognition
Built in storage and forwarding mechanism, supporting multiple protocols
Green and energy-saving, using low-power CPUs
Working power supply: DC 12V-52V provides reverse protection and 4A overcurrent protection
Lightning surge protection (power supply): 5000A (surge waveform of 8/20 μ s)
Meets industrial level operational standards, with an average time between failures of over 300000 hours
| Standards and Protocols | IEEE802.3-10Base-T IEEE802.3u-100Base-Tx IEEE802.3ab-1000Base-T(x) IEEE802.3x - Flow Control |
| Interface | Electrical port: 8x10/100/1000Base-T (X), RJ45, Automatic detection Optical port: 1x1000Base-F (X), Full/half duplex mode, MDI/MDI-X adaptive |
| LED indicator light | Power indicator light: PWR |
| Exchange Properties | Transmission method: storage and forwarding Backplane bandwidth: 18G MAC address: 8K Application level: Level 2 Power consumption:<3W Exchange latency:<3us Cache: 1Kbit |
| power supply | Input voltage: DC12-52V Supports dual power redundancy Supports reverse protection Access terminal: Phoenix terminal |
| Consumption | Empty: 1W@24VDC (Non PoE) The full load: 3W@24VDC (Non PoE) |
| Work environment | Working temperature: -40 ℃~75 ℃ Storage temperature: -40 ℃~85 ℃ Relative humidity: 5%~95% (without condensation) |

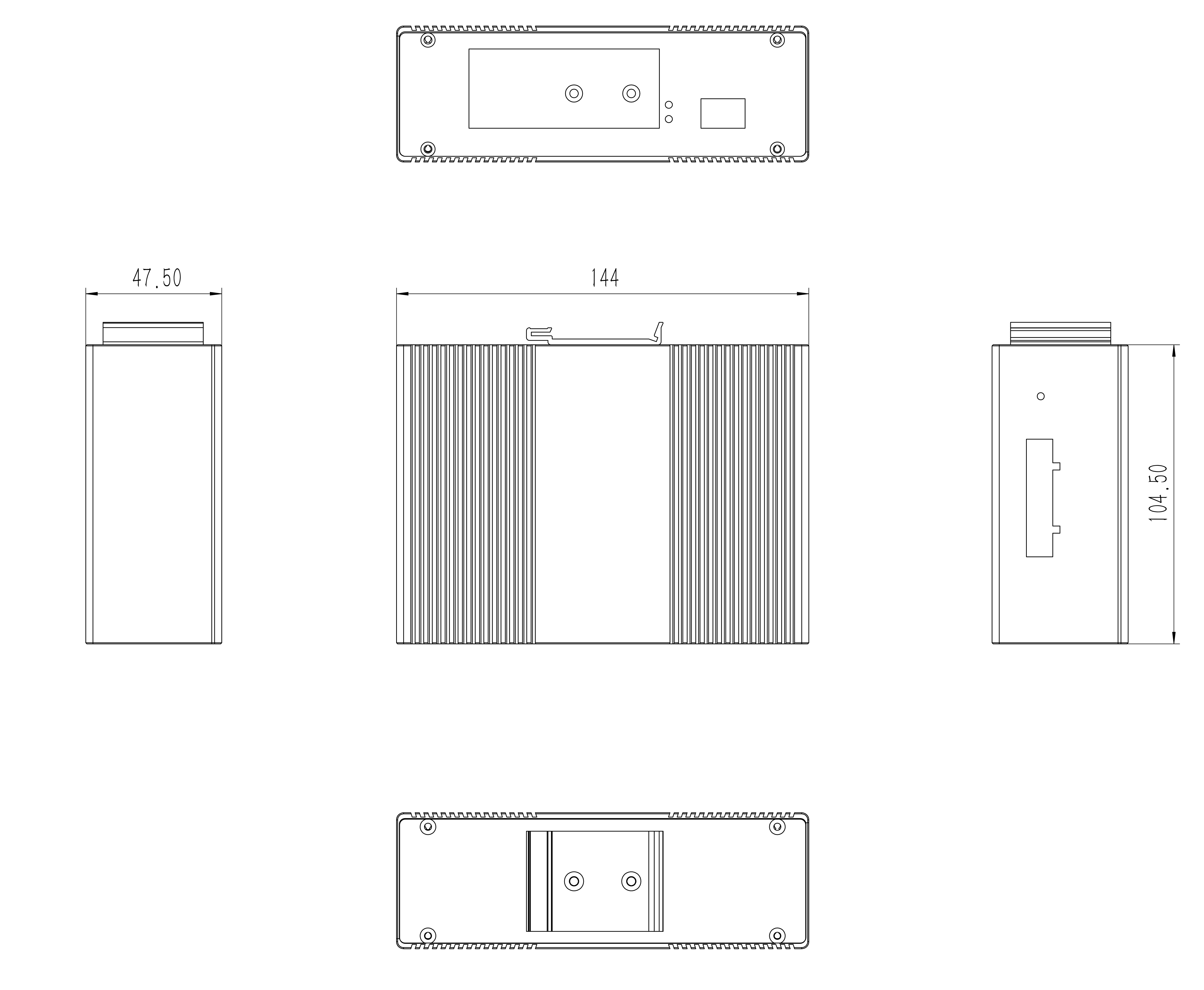

| mechanical structure | Housing: IP40 protection level, aluminum alloy housing Installation: DIN rail mounted Size: (length × wide × Height) 143 x 101 x 44mm Product weight: 0.64Kg |
| Industry standards | IEC 61000-4-2 (ESD, Electrostatic Discharge Immunity), Level 4 ●Air discharge: ± 15kV ● Contact discharge: ± 8kV IEC 61000-4-5 (Surge, Surge Immunity), Level 4 ●Power supply: common mode ± 4kV, differential mode ± 2kV ●Ethernet interface: ± 4kV Impact: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
| Authentication | CE, FCC, RoHS, ISO9001, Ministry of Public Security testing |
| warranty | 5 Years |
